RightMark Audio Analyzer test report

Testing device [ASIO] Creative Sound Blaster ASIO 96
Sampling mode 24-bit, 96 kHz
Interface ASIO
Testing chain External loopback (line-out - line-in)
RMAA Version 6.4.4 PRO


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change -0.1 dB / -0.1 dB
Mono mode OFF
Calibration singal, Hz 1000
Polarity correct/correct



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.02, -0.10
Excellent
Noise level, dB (A)
-108.9
Excellent
Dynamic range, dB (A)
109.1
Excellent
THD, %
0.00274
Excellent
THD + Noise, dB (A)
-88.7
Good
IMD + Noise, %
0.00487
Excellent
Stereo crosstalk, dB
-87.7
Excellent
IMD at 10 kHz, %
0.00627
Excellent
General performance

Very good

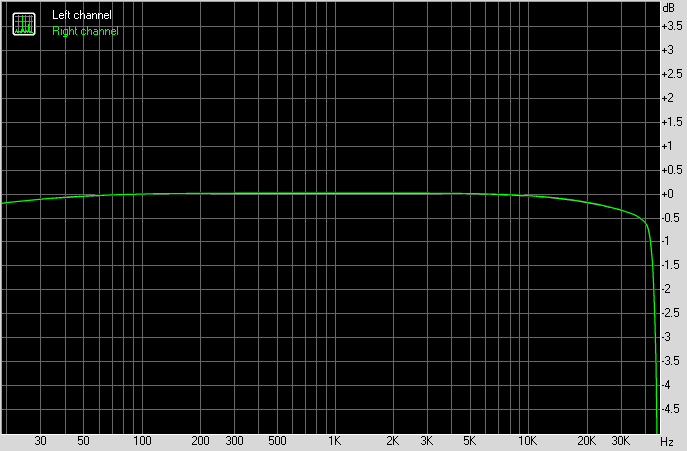

Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-0.18, +0.01
-0.18, +0.02
From 40 Hz to 15 kHz, dB
-0.10, +0.01
-0.10, +0.02

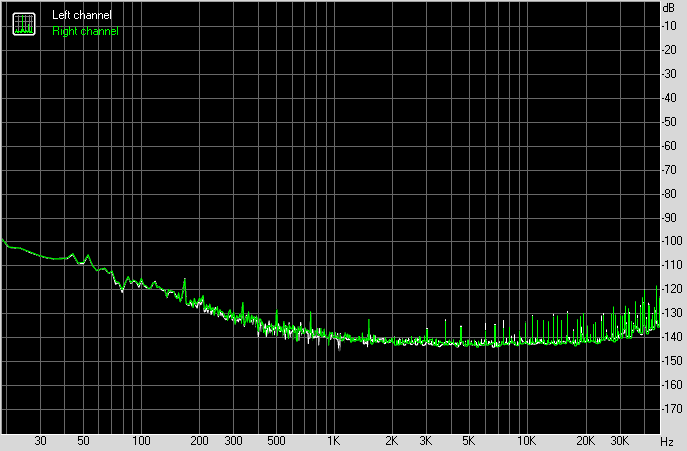

Noise level

Spectrum graph


Left
Right
RMS power, dB
-96.3
-96.3
RMS power (A-weighted), dB
-109.0
-108.9
Peak level, dB FS
-76.1
-77.0
DC offset, %
-0.0
-0.0

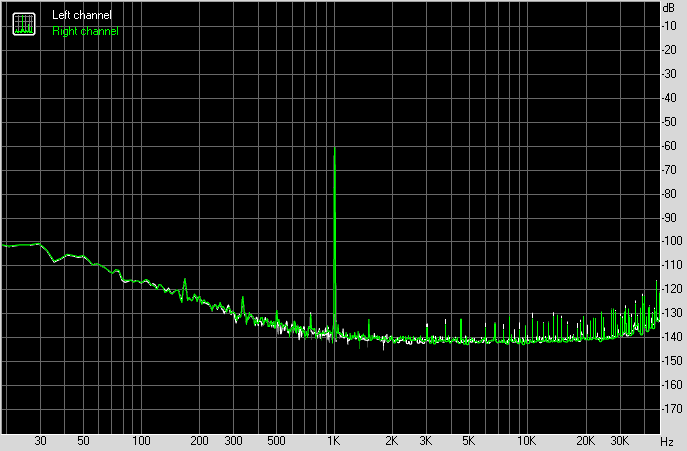

Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+98.6
+98.3
Dynamic range (A-weighted), dB
+109.2
+109.1
DC offset, %
+0.00
+0.00

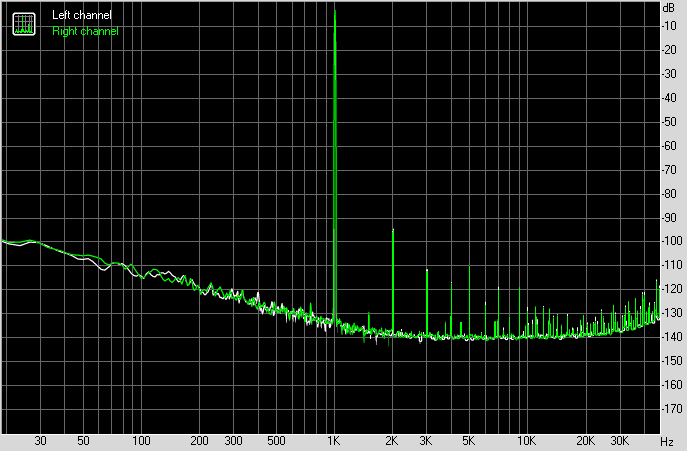

THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
0.00280
0.00267
THD + Noise, %
0.00409
0.00423
THD + Noise (A-weighted), %
0.00375
0.00358

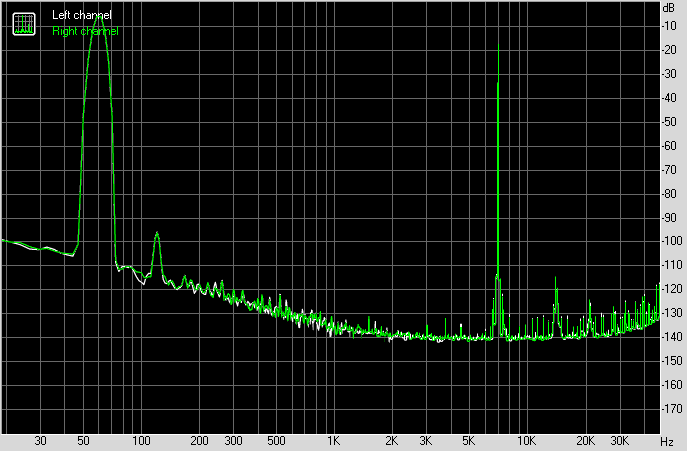

Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
0.00485
0.00489
IMD + Noise (A-weighted), %
0.00201
0.00197

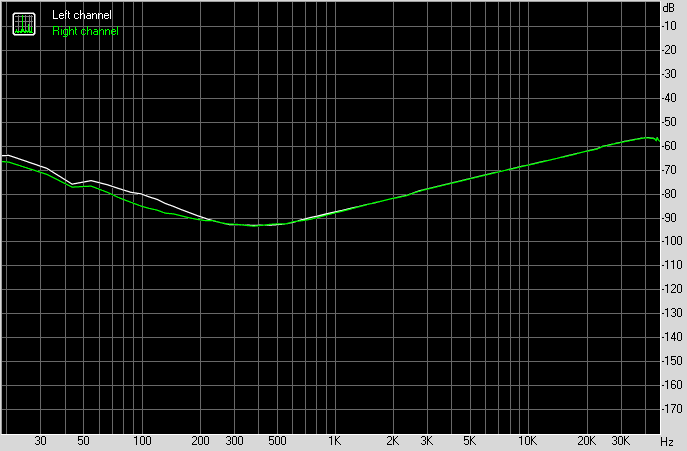

Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-79
-84
Crosstalk at 1000 Hz, dB
-86
-87
Crosstalk at 10000 Hz, dB
-67
-67

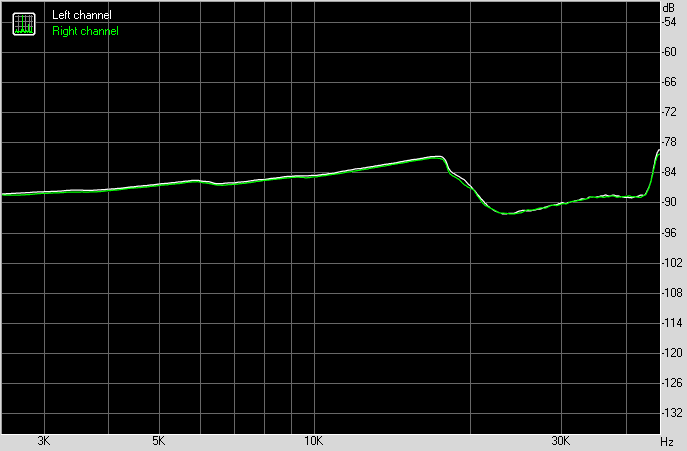

IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.00487
0.00471
IMD + Noise at 10000 Hz,
0.00594
0.00575
IMD + Noise at 15000 Hz,
0.00832
0.00803
